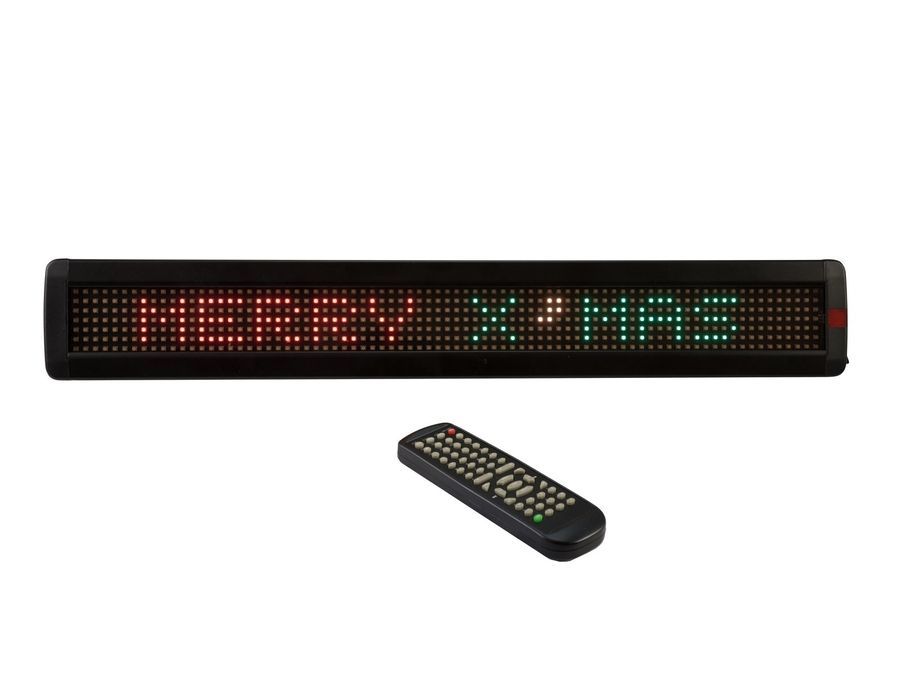

EUROLITE ESN 7x80 USB LAN LED Moving Message

Описание

Подвижный дисплей сообщений RG (7x80 пикселей) с возможностью подключения к сети, программного обеспечения для ПК и ИК-пульта дистанционного управления

Fully programmable via supplied IR remote control or with PC software via USB port and RJ45 network port
Dot matrix with 560 super bright SMD LEDs
Large database with various display effects, symbols and graphics
99 editable memory locations
8 editable bitmap memory locations, 7 font sizes, 16 color combinations, 8 display speeds, 24 display effects, 30 integrated symbols
8 animated messages (Welcome, Merry X'Mas, Happy New Year etc.)
Programming of sequences
Timer function
560 powerful LEDs SMD 3535 R/G
The device is cooled by passive convection cooling
Control via IR remote control; network cable; via USB; wired remote control
With Mounting bracket
For application areas such as: Advertisement/Shop window; Trade fair and shop fitting; Wedding/gala/events; Clubs/dancing school; restaurants, bars and hotels

Package contents

Характеристики:

Power supply:	5 V DC
Power consumption:	12 W
IP classification:	IP20
Protection class:	Protection class III
Power connection:	Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter included
LED:	560 x SMD 3535 R/G
Network connection:	Protocol: Ethernet TCP/IP via 1x RJ-45 (F) mounting version
Cooling:	Passive convection cooling
Control:	IR remote control; network cable; via USB; wired remote control
Image:	Max. 7x80 px
Presentation:	1-line, 13 visible characters 16 colors
Text:	7 fonts
Housing color:	Black
Attachment system:	2x Mounting bracket
USB port:	USB 2.0, Typ micro USB (F) mounting version
Display:	60,5 cm x 5,5 cm
Dimensions:	Width: 64,7 cm Depth: 9,7 cm Height: 3,5 cm
Weight:	1,25 kg
External mains adapter
Power supply:	100-240 V AC, 50/60 Hz
Pin configuration:	Inside + / outside -
IP classification:	IP20
Protection class:	Protection class II
Cable length:	Approx. 1,5 m
Output:	5 V DC; 3 A; 15 W
Color:	Black
Remote control
Battery:	2 x Micro (AAA) included
USB cable
Cable length:	Approx. 1,5 m
Plug A:	1 x USB, type A
Plug B:	1 x micro USB (M)
Color:	Black
Network cable
Cable length:	Approx. 1,5 m
Connector type:	RJ-45 (M)
Color:	Black
Angle
Diameter mounting holes:	1 x Ø8mm; 1 x Ø6mm
Material:	Metal, 1,4 mm
Color:	Black

Packaging units

PU	EAN	Weight	Dimensions
1	4026397681314	1,59 kg	84cm x 8cm x 16,5cm
5	4026397681321	8,70 kg	86cm x 44cm x 18,5cm
