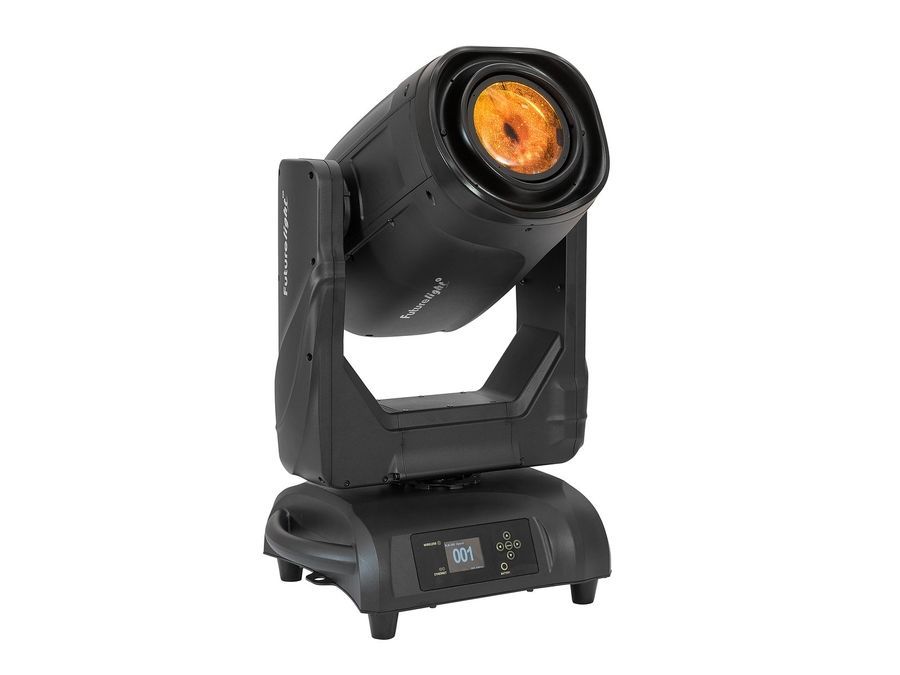

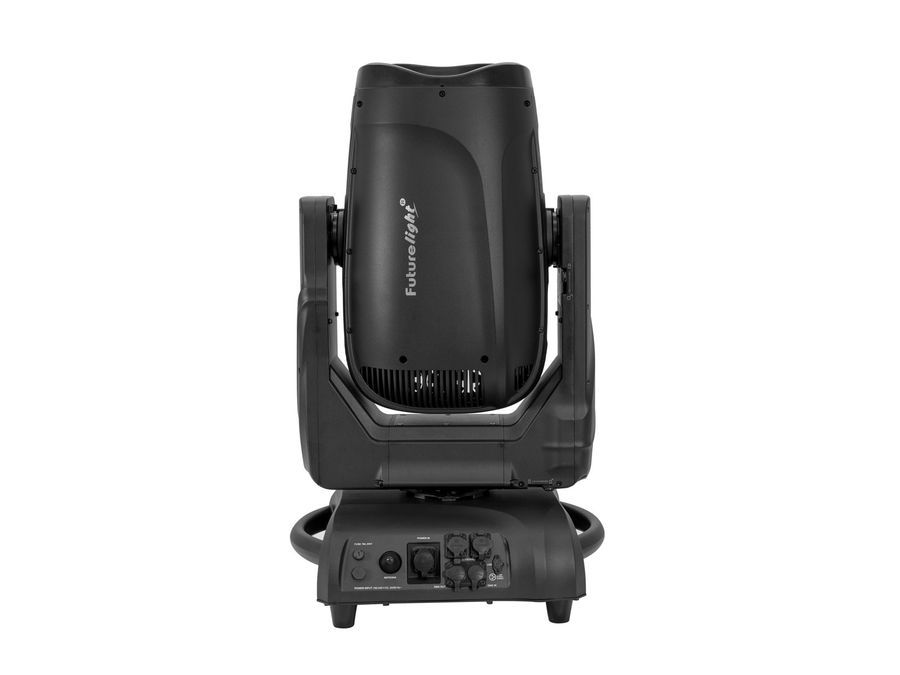

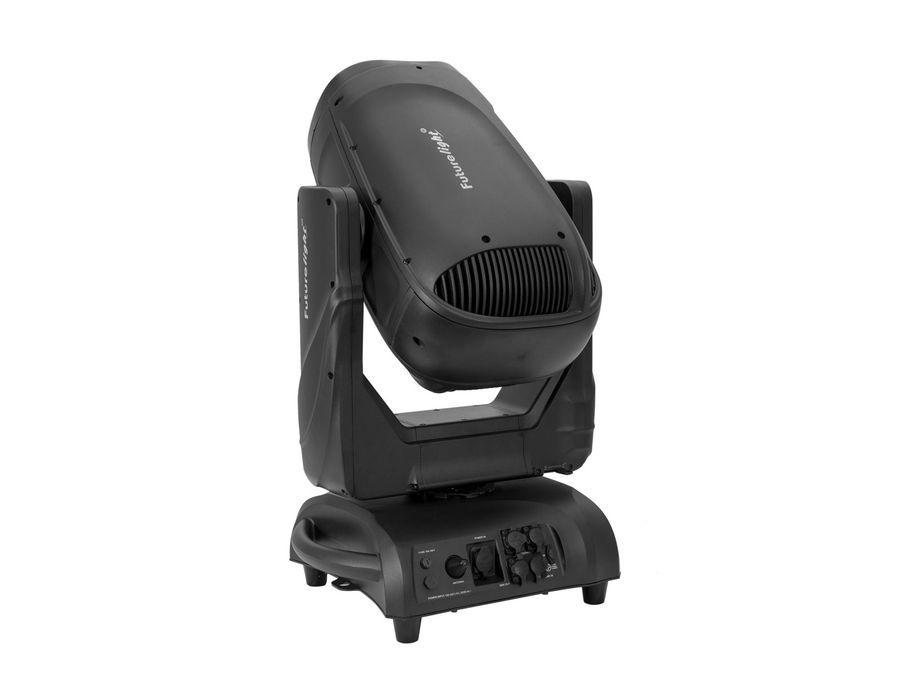

FUTURELIGHT IP PLH-420 Moving Head Spot/Beam

FUTURELIGHT IP PLH-420

Weatherproof Moving Head

The PLH-420 is a weatherproof moving head that combines spot, beam and wash. The hybrid PLH-420 offers high light output in combination with a very versatile range of functions. Thanks to IP65 class protection, it can even stand in the rain without any problems.

Beam and spot function

Thanks to its zoom optics, the moving head generates beam angles between 1° and 14° in beam mode and between 4° and 25° in spot mode. In beam mode, its 420 watt discharge lamp creates a targeted hotspot for a powerful light output, while in spot mode, it creates an extremely homogeneous image for consistent projections.

Equipment

The moving head is equipped with 9 rotating, interchangeable gobos as well as 14 fixed gobos and has two rotating prisms. The first prism produces 8 circular images, while the second produces 6 linear images. A frost filter softens the light to create a washlight effect; this feature can also be resized with the zoom. There are also 14 different colors on a color wheel.

Weather-proof beam/spot moving-head (IP65) with 420 W discharge lamp & CRMX wireless receiver

• Light source: USHIO NSL 421 discharge lamp (2000 hrs)
• Bidirectional rotating 6-fold linear prism and 8-facet prism with variable speed, combinable for multi-facet effects
• Lamp installed and adjusted ex factory
• Positioning within 540° PAN, 265° TILT
• Auto position correction (feedback)
• Exact positioning (16 bit resolution)
• Color wheel with 13 dichroic filters plus open
  half colors selectable, Rainbow effect with adjustable speed in both directions
• Gobo wheel with rotating gobos, 9 gobos and open
  shake effect
• Gobo wheel with static gobos, 13 gobos und open
  shake effect
• Integrated show programs
• The device is cooled by temperature-controlled fan
• Prism 8-fold; Prism 6-fold Linear; frost filter stepless; Zoom motor-driven; Focus motor-driven
• With a beam angle of 1° - 25°
• With bracket with hinged hooks
• Multicolor LCD display,
  with battery buffering for easy controlling upgradeable
• Suitable for outdoor use
• Scenes user-definable
• Strobe effect
• Control via stand-alone; Master/slave function; DMX; RDM; CRMX by LumenRadio; ArtNet; sACN; Sound to light via Microphone
• Preprogrammed in Light Captain
• For application areas such as: Stage; Rental
• Application possibility: Standing; suspended

Package contents

• 1 x moving light, 1 x user manual, 1 x xLR cable, 1 x power cord, 2 x holder
